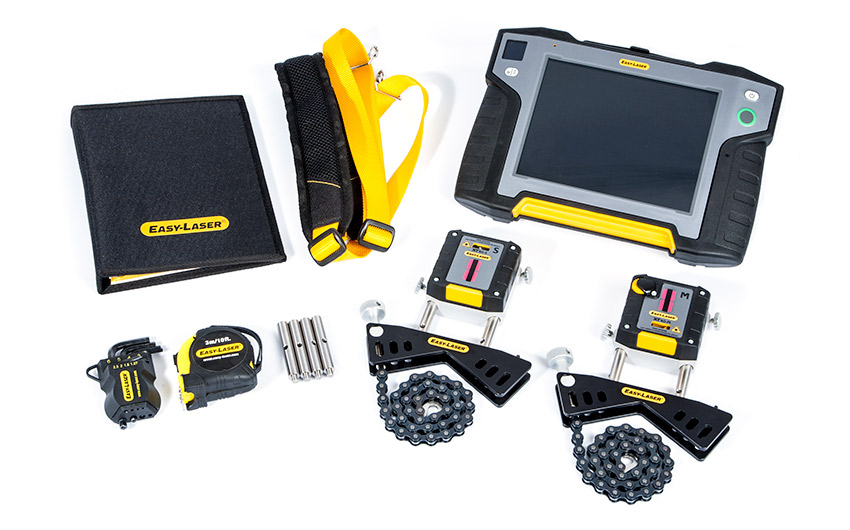

Easy-Laser® XT440 - Shaft alignment

Easy-Laser® XT440 - Shaft alignment
Product ID: EL-XT440

With Easy-Laser XT440 you can perform all necessary steps of shaft alignment on horizontal and vertically/flange mounted machines. The user-friendly software, available in 10 languages, guides you step by step through the measurement process. ​

Specifications:

Display Unit

Name:XT11
Type of display/size:VGA 8” colour screen, backlit LED, multitouch
Internal battery (fixed):Heavy duty Li Ion chargeable
Connections:USB A, USB B, Charger, AV
Operating temperature:-10–50 °C
Storage temperature:-20–50 °C
Communication:Wireless technology, WiFi
Relative humidity:10–95%
OLED display:96x96 pixels
Camera:13 Mp, with diode lamp
IR camera (optional):FLIR LEPTON® (0–450 °C, 32–842 °F)
Help functions:Built-in manual
Environmental protection:IP class 66 and 67
Housing material:PC/ABS + TPE
Dimensions:WxHxD: 274x190x44 mm [10.8x7.5x1.7”]
Weight (without batteries):1450 g [51.1 oz]
Operating time:Up to 16 h continuously

Measuring Units

Name:XT40-M / XT40-S
Communication:BT wireless technology
Type of detector:TruePSD 30 mm [1.2”]
Resolution:0.001 mm [0.05 mils]
Measurement accuracy:±5µm ±1%
Measurement range:Up to10 m [33 feet]
Type of laser:Diode laser
Laser wavelength:630–680 nm
Laser class:Safety class 2
Laser output:<1 mW
Electronic inclinometer:0.1° resolution
Environmental protection:IP class 66 and 67
Operating temperature:-10–50 °C
Internal battery:Heavy duty Li Ion chargeable
Storage temperature:-20–50 °C
Relative humidity:10–95%
Housing material:Anodized aluminium + PC/ABS + TPE
Dimensions:WxHxD: 76x76.7x39.3 mm [3.0x3.0x1.5”]
Weight:245 g [8.6 oz]
OLED display:128x64 pixels
Operating time:>24 h continuously
Certificate:
  • ISO9001 #4.11.
Order Information:
  • Minimum Order: 1ST
