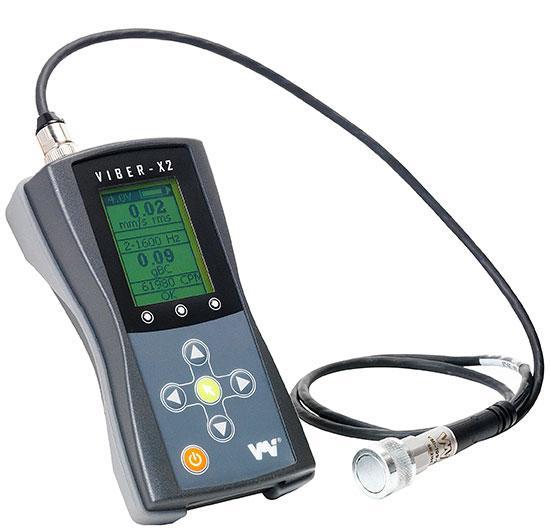

VIBER X2™

Product ID: VMI-Viber X2

Designed for maintenance and repair teams and operators personnel that needs a reliable, fast and easy to use tool for basic condition monitoring in rough conditions.

Specifications:

Vibration transducer	Accelerometer	Standard nom 100 mV/g	(Selectable sensitivity in the instrument) 0,1 - 99999 mV/g
Input amplitude range	Vibration	Max 50g RMS	With other sensor up to 500g and down to 0,05g
	Bearing condition	Max 20g
Dynamic range	80 dB (at 159 Hz with auto ranging)
Frequency range	Vibration	2 - 400 Hz 10 - 1000 Hz 6 - 1600 Hz 11 - 3200 Hz	User selectable
	Bearing condition	0.5 to 16 kHz
Vibration units	g-value, mm/s, m/s2, in/s, µm, mils		User selectable
Amplitude presentation	RMS, Peak, Peak-Peak		User selectable
Analysis	Five highest peaks can be displayed
Frequency range of peak detection	Frequency range		User selectable unit, between Hz and RPM
	2 - 400 Hz
	6 - 1600 Hz
	11 - 2000 Hz
	10 - 1000 Hz
Accuracy	Vibration	± 3 %	Full scale is 50g for acceleration, other units are frequency dependent. All values are related to the normal acceleration 9,80665 m/s2
	Bearing condition	± 5 %	Over 0.5 gBC
	Frequency/RPM	± 0.2 %
Battery	Rechargeable Lith- ium	2300 mA/h max 60°	Capacity of the batteries can vary depending on hardware revision. Max 2300 mA/h. (Storage temp. -20°C to max 60°C)
Operating time	1 week normal use
External charger	5,0 V relugated @ 2000 mA
LCD display	B&W 64 x 120 pixels with background light		Operating temp. min 0°C to max 50°C, storage temp. max 72°C
Enclosure protection	IP65
Operating temp. range	0 to 50°C		The restriction concerns display
Weight	340 gram		Instrument, including battery and transducer
Size (L x W x H)	145mm x 77mm x 47mm
OBS. If changing to another accelerometer, the sensitivity (mV/g) must also be changed. This is done in the menu under “Transducer“.

Features:

Accurate measurements for 4 selectable frequency ranges.
Real-time measurement of the total vibration level and the Bearing Condition (BC), shown simultaneously.
The largest amplitude peak frequency in RPM or Hz in main screen display.
Measurement units and measurement presentation may be
selected by the user from the following list:
- g-value = (RMS, Peak or Peak-Peak)
- a = m/s² (RMS, Peak or Peak-Peak)
- V = mm/sec (RMS, Peak or Peak-Peak)
- V = inch/sec (RMS, Peak or Peak-Peak)
- D = mills (RMS, Peak or Peak-Peak)
- D = µm (RMS, Peak or Peak-Peak)

Order Information:

Minimum Order: 1ST
