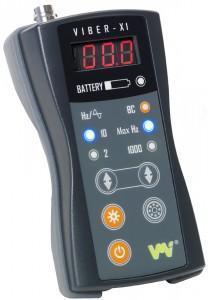

VIBER X1
Product ID: VMI-Viber X1
VIBER X1 ™ is an analog vibration measuring instrument for control and measurement of the mechanical vibration and bearing condition. A flexible instrument that fits in every maintenance engineer's pocket.
Specifications:
|
Vibration transducer
|
Accelerometer
|
Standard 100 mV/g ± 15%
|
(Adjusted to the instrument)
|
|
Input amplitude range
|
Vibration
|
Max 20 g RMS
|
With other sensor up to 200 g
|
|
Bearing condition
|
Max 5 gBC
|
||
|
Dynamic range
|
60 dB (156,1 Hz)
|
|
|
|
Frequency range
|
Vibration
|
2 - 1000 Hz
10 - 1000 Hz
2 - Max Hz 10 - Max Hz
|
User selectable
|
|
Bearing condition
|
0.5 to 16 kHz
|
|
|
|
Vibration units
|
g-value, mm/s
|
User selectable
|
|
|
Amplitude presentation
|
RMS
|
||
|
Signal processing
|
Analogous
|
||
|
Accuracy
|
Vibration
|
± 3 %
|
Full scale is 20g for acceleration other units are frequency dependent. All values are related to the normal acceleration
9,80665 m/s2 at sea level and 45 ° latitude
|
|
Bearing condition
|
± 5 %
|
Over 0,05 gBC
|
|
|
Battery
|
Rechargeable Lithium or NiMH (AAA)
|
Capacity for batteries is 2300 mA/h for lithium and 1100 mA/h for NiMH
|
|
|
Operating time
|
Min 24 or 12 hours for a full charged battery park
|
Operating times depends on intensity on the LED:s and type of batteries.
Ca 24 hours for Lithium and ca 12 hours for NiMH
|
|
|
External charger
|
5,0 V Lithium or 7,5 V NiMH (AAA)
|
|
|
|
LED display
|
7 segment
|
|
|
|
Enclosure protection
|
IP 65
|
|
|
|
Operating temp. range
|
- 20 to 60 °C
|
|
|
|
Weight
|
285 gram
|
Instrument, including battery and transducer
|
|
|
Size
(L x W x H)
|
125mm x 70mm x 40 mm
|
||
|
OBS. You should avoid using other accelerometers because of instrument calibration. If you change the accelerometer, the instrument must be calibrated to preserve the accuracy.
|
|||
Features:
• Total level (mm/s RMS) and bearing condition.
• Easy to use, start and measure.
• Dust-and waterproof, for use under tough conditions (IP 65).
• Interchangeable accelerometer with cable
• Selectable frequency ranges.
• Analog instruments with high measurement accuracy and reliability.
• Provides a good security in assessing when a piece of equipment need to be addressed.
Order Information:
- Minimum Order: 1ST
