VMI-VIBER X4(VMI-VIBER X4) - Winkey Tech. Management Co., Ltd.

Product

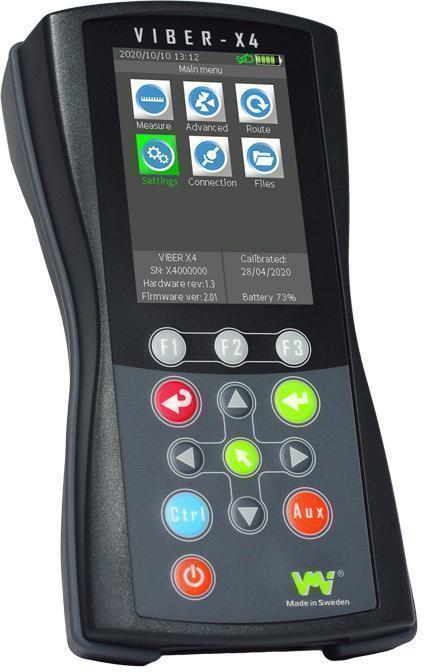

The VIBER X4™ is a state of the art route-based vibration analyzer developed for advanced condition maintenance with top class accuracy

• Predict equipment failures before they occur

• Troubleshoot equipment and discover the problem

• Inspect equipment during maintenance

• Ensure correct installation of equipment

• Easy to operate by logic functions, saves time to get started

• Flexible with many functions

• Ability to choose your own language

• Bright high-resolution display

• Record wave time signal, up to 5 minutes

• Quickly charge up to 80% within two hours even in the car

• 32 GB of memory

• Rugged and tight (IP 65)

• SpectraPro, PC software for advanced vibration analysis

Digital	ADC	24 bit, 128 kSPS
	Dynamic range	120 dB
	Memory	32 GB
Display	Size & Resolution	3.5 inch Amorphous TFT-LCD320 x 480 pixels
Display	Colors	65536
Singnals in	AC inputs	All standard ICP accelerometers (4mA/24V), velo-cimeters or general purpose AC transducers
Singnals in	External reference	0.5 to 24 V
Temp Sensor	Temperature	-20 to 140 °C Built-in infrared sensor
Measure	Frequency range	Vibration: 0.5 to 12800 Hz BC: 500 to 25000 Hz
	Amplitude range	0 to 80 g, peak Depending on transducer
	Accuracy	0.01 g ± 1 % for non integrated 0.1 mm/s ± 2 % for single integrated 2 µm ± 3 % for double integrated
	FFT lines	Up to 12800
	Resolution	Up to 0.125 Hz/line
	Windowing	Hanning, Hamming, Blackmann, Kaiser-Bessel
Power	Battery	3.7 V, 6.8 Ah Li-ion Fuel gauge smart battery pack
	Operating time	10 hours typical use
	Charging	2 hours up to 80% with fast charger 4 hours fully charged
	Charger	Fast charger QC 3.0 compatible
Temp.	Operating Storage	-20 °C to +70 °C(-4 °F to 158 °F) -30 °C to +80 °C(-22 °F to 176 °F)
